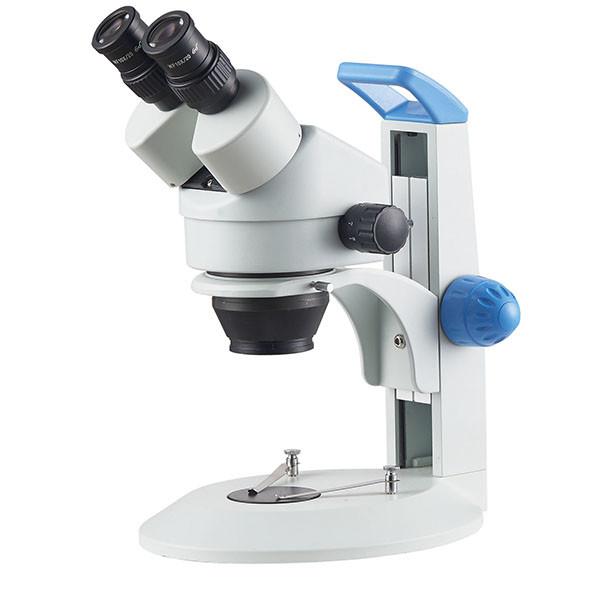

Stereo zoom microscope binocular zoom microscope track stand

Stereo zoom microscope binocular zoom microscope track stand

stereo zoom microscope
the zoom-stereo microscope optical structure of common primary objective lens. The two beams after imaging the object are separated by two sets of intermediate objective lenses-the zoom lens, and they form an integrated viewing angle and pass through their respective eyepieces For imaging, its magnification change is obtained by changing the distance between the intermediate lens groups.

Magnification: 7X-45X, 3.5X-270X with optional eyepieces and objectives

Eyepiece: WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses

Optional Eyepiece: WF10X/20mm, WF15X/15mm, WF20X/10mm, WF25X/9mm, WF30X/8mm

Main Body: Binocular head, 45° inclined, 360° rotatable, can be locked in any position

Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters

Objective 0.7X-4.5X stereo zoom; Zoom Ratio:6.4:1

Aux Lens 0.3X, 0.5X, 0.7X, 0.75X, 1.5X, 2X

track stand
Vertical Height:276mm
Mounting Size:φ76mm
Focusing Distance:78mm
With φ95mm B/W Plastic Plate and Paired Clips

Base Size:225x200x28mm
